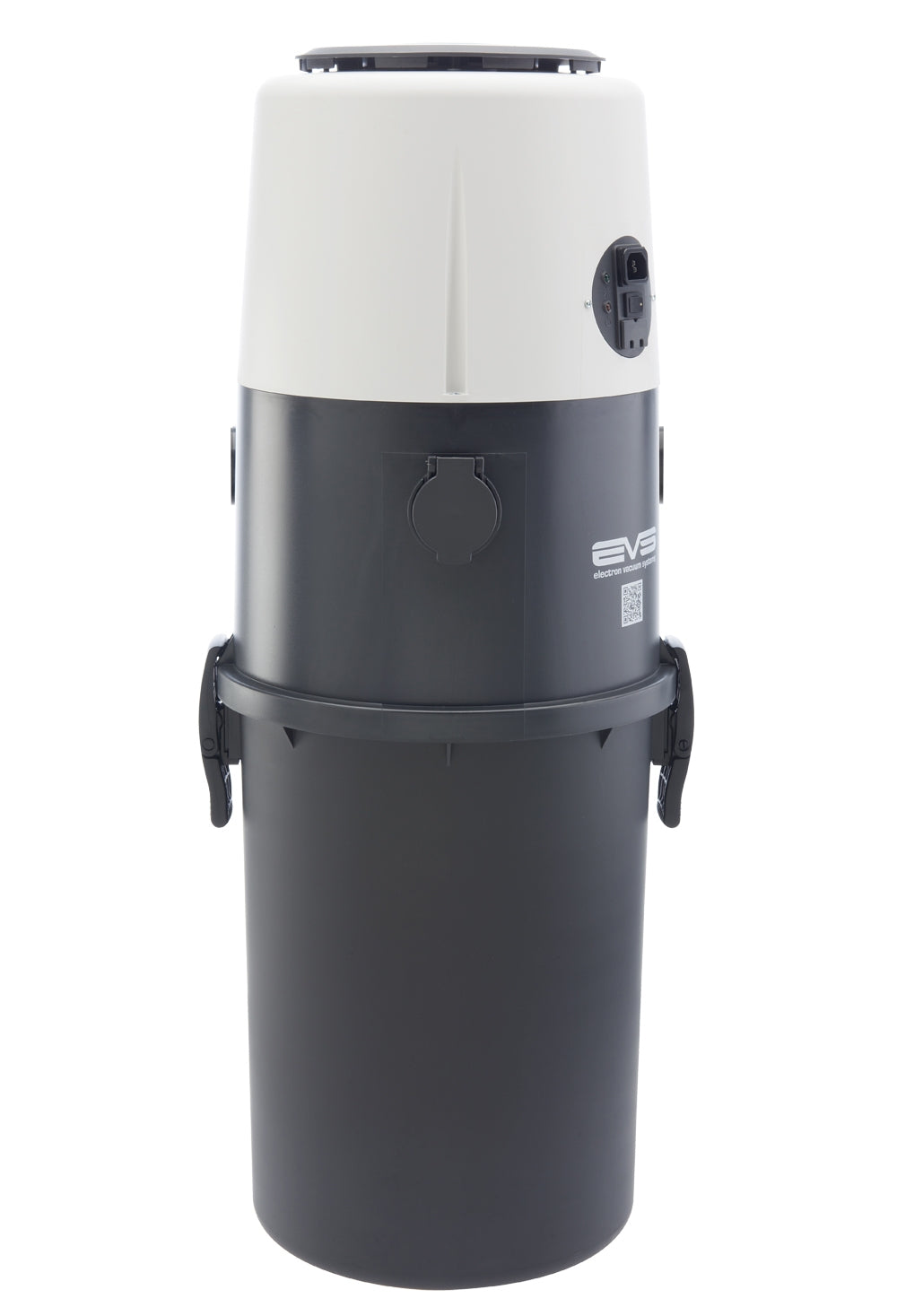

Electron EVS Ducted Vacuum Cleaner System Model 2808

Electron EVS Ducted Vacuum Cleaner System Model 2808

Model 2808

Vacuum Motor Specifications

Tangential By-pass discharge
Flow Through discharge
Double ball bearings l
Diameter of Motor mm 183
Air Watts 700
Airflow l/s (max.) 56
Sealed Vacuum mm H2O (max.) 3480
RPM @19mm working orifice 21500
Label Rated Electrical Watts 1800
Noise Level dbA with Silencer @ 3m 72.5
Temperature Sensitive Thermal Protector
Control Circuit 12 V DC
Control Current 100mA
Nominal Voltage 240 V AC
Nominal Frequency 50 Hertz

Power Unit Physical Specifications

Overall Height (mm) 810
Overall Diameter (mm) 310
Overall Weight (kg) 9.0
Dual Filtration Compatible System
Cyclonic Filtration (Standard)
HFPC Filter Cartridge
Filter Bag Filtration (Optional with Bag Adaptor Kit)
Silencer for Exhaust
Left & Right ducting entry points
Direct Inlet point with On/Off switch
Wall Mounting of Power Unit
Body Housing Construction ABS
Dirt Capacity litres 25

Authority Approvals / Origin

“C” Tick Compliance EMC – AS/NZS 1044

Complies to AS/NZS 60335.2.2

Made in Australia

Installation Recommendations *

Size of Building up to Squares 90
Number of Inlet Points 12
Number of Aux Points 6
Working Hose length – up to metres 18
Max distance to furthest point metres
Hide-A-Hose Compatible

Notes:-

* Installation Recommendations shown is only an approximate guide and may vary to actual construction specifications and layout of building. Please consult with your installer for appropriate model.

Specifications subject to change without notice. EOR
